Perceptron

What is it?

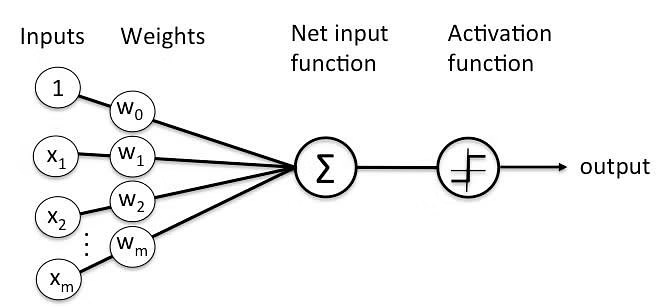

A perceptron is the simplest neural network unit, based on the threshold logic unit (TLU). Similar to the biological neuron, there are signals flowing from the input to the output. These signals interact with three properties: the bias, the weight and the activation function.

Given, $f$ as the activation function, $w$ as the weight $x,y$ as the input and output, and $b$ as the bias, the perceptron can be mathematically represented as:

$$y_i=f(w_i{x}_i+b_i)$$

Normally, we can represent the set of inputs as Vectors, and the product of $w\ast b$ becomes a dot product. We can go a step further and write it as a sum:

$$y_m=\delta \left(\sum _{i=0}^m{w}_i{x}_i\right)$$

---

The importance of bias

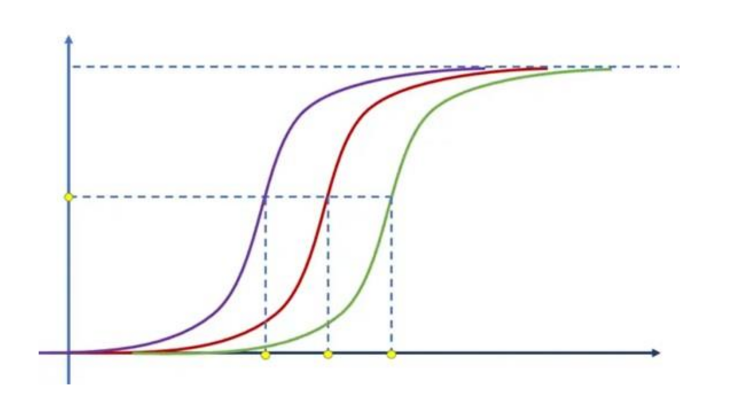

Represented by $b$, the bias can increase or decrease the input in the activation function, which can displace the whole function, based on the bias value. The below image reflects the displacement of a Sigmoid Function for different bias values.

---

Implementing with PyTorch

One can easily implement a perceptron algorithm using PyTorch:

import torch
from torch import nn

class Perceptron(nn.Module):
	def __init__(self, input_dimension):
		super(Perceptron, self).__init__()
		self.fcl = nn.Linear(input_dimension, 1)

	def forward(self, x):
		# Using a sigmoid activation function
		return torch.sigmoid(self.fcl(x)).squeeze()
