What is it?

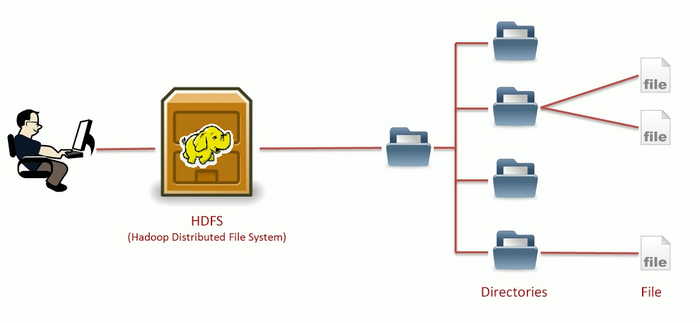

The HDFS, which stands for Hadoop Distributed File System, is a data storage technique designed to handle massive amounts of data, be fault tolerable, while still being able to scale with standard machines.
The write-once, read-many approach
HDFS is built around the idea that the file will be written only once, but will be read multiple times. This way, it focuses on fastest retrieval time, while not allowing to edit existing data. This happens because the writer module has a lock to ensure data coherency, which would be prejudiced if a large file was to be read and written at the same time.
How to kinda update records?
While is not possible to update a existing record in-place, one could just delete the old record and insert an updated copy at the same place the old record was.
The architecture of HDFS
HDFS has two main components, which is normally divided into a single Name Node and multiple Data Nodes.
-
Data Node
Data Nodes are the components which store the actual data, which, for large files, are divided into sections of 128 MB. Data Nodes also exchange information between themselves to ensure correct data replication and integrity.
-
Name Node
The Name Node stores metadata about the registered files, and logs of edited, uploaded and removed files. Basically, the Name Node tells application where to find the desired data.
Reading files

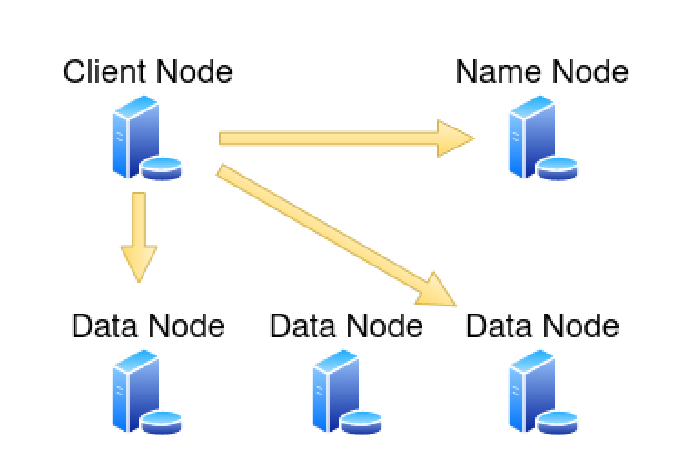

Reading files is done by a client node by asking the Name Node where a file is stored, and after retrieving this information, the data is read from the selected Data Nodes.
Writing files

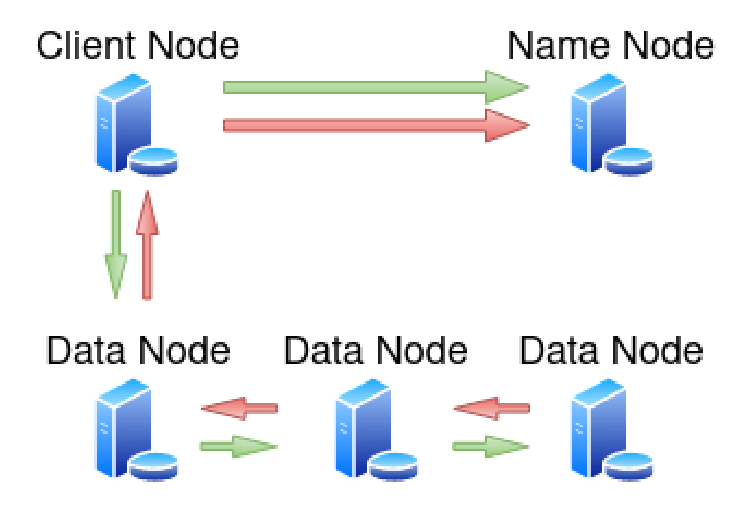

Writing files is a little more complicated. First, the client node asks for the Name Node to create a new file, which will then register the file creation and confirm the operation. Then, the client node communicates with a single Data Node, which it will replicate and distribute the file into different Data Nodes by itself. At the end of the process, it confirms the operation to the client node. At last, the file is created, and the client node informs the Name Node where the created file is stored at.
